Mode sets and transverse quadrature

A multimode calculation has two spatial choices: which modes to retain, and where to evaluate the nonlinear response across their shared cross-section. Increasing the number of modes and increasing the quadrature resolution address different errors. The RDW lesson shows how to interpret the resulting modal energies.

The transverse quadrature

The multimode transform integrates over the cross-section with one fixed rule, chosen once per problem, never an adaptive one. The argument is not economy. The Kerr polarisation is cubic in the field, so its projection is a quartic in the transverse profiles; those are Bessel functions of \(r/a\), analytic, and a Gauss rule of modest order integrates a quartic of them to rounding. Measured against a 2048-node reference, the quartic overlap tensor of four \(\mathrm{HE}_{1m}\) modes is converged to \(2\times10^{-14}\) at \(n_r = 32\) — the reference’s own rounding, not the rule’s.

Radially, \(n_r\) Gauss–Legendre nodes on \(\xi = r/a \in (0,1)\), with the Jacobian and the azimuthal \(2\pi\) folded into the weights. With radial_rule="gauss_kronrod" (the capillary default) the count is rounded up to \(2n+1\) and the rule becomes the Kronrod extension of the \(n\)-point Gauss rule, whose Gauss subset is an embedded coarse rule: the difference of the two projections is an error estimate that costs nothing, because the two rules share every node the coarse one has. solprop computes that extension with Laurie’s algorithm rather than shipping a table, so any order is available, and checks it node by node against the Julia package QuadGK.jl’s implementation of the same algorithm.

In the field scale, for one Marcatili HE₁₁ mode in a uniform gas, the radial projection is an integral over \(\eta = J_0(u_{01}r/a)\), and radial_rule="field_scale" and "field_scale_radau" are the Gauss and Gauss–Radau rules for it: exact for the linear and Kerr source from two (Radau: three) nodes, the Radau rule with one node on the axis, and the one-node member the effective-area model. They carry radial area weights, have no embedded coarse rule, and refuse any other mode set. When to use them, with the evidence, is in radial nodes for expensive responses.

Azimuthally, \(n_\theta\) equispaced nodes offset by half a step — the periodic trapezoid rule, which is a Gauss rule on the circle and is exact for trigonometric polynomials of degree at most \(n_\theta - 1\). A quartic product of modes with azimuthal order up to \(h\) reaches degree \(4h\), so transverse_quadrature() warns below \(n_\theta = 4h + 1\); the default 16 covers \(h \le 3\).

The offset is not cosmetic. On-grid nodes at \(0, \pi/2, \pi, 3\pi/2\) annihilate products such as \(E_xE_y\) for a superposition of hybrid modes, so two successive levels of an adaptive rule both return zero, the level-to-level error estimate is zero, and the integrator declares convergence on a wrong value. The fixed offset rule cannot be fooled that way, and has no convergence decision in it to fool.

What the tensor is worth checking against

The rule’s job is one number per pair of modes, and for a set of \(\mathrm{HE}_{1m}\) modes that number has a closed form worth stating, because it is the whole of the intermodal Kerr coupling at leading order. A field that is the fundamental alone drives a polarisation \(\propto \hat e_1(r)^3\), which factorises: whatever the pulse, the response, the shock term or the third harmonic, the drive it projects into mode \(p\) is that of mode 1 times

\[\frac{T_p}{T_1} = \frac{\int \hat e_1^3\,\hat e_p\,\mathrm{d}A} {\int \hat e_1^4\,\mathrm{d}A}, \qquad \hat e_m = \frac{J_0(u_m r/a)}{\sqrt{N_m}} .\]

For the first four modes that is \(1\), \(0.4785423\), \(0.0221346\) and \(-0.0023723\) — geometry, with no gas, no wavelength and no normalisation constant in it. The fourth is negative because \(J_0(u_4r/a)\) changes sign three times inside the bore. The fundamental’s own entry has a closed form too,

\[T_1 = \int \hat e_1^4\,\mathrm{d}A = \frac{4}{(\varepsilon_0c)^2 A_\text{eff}},\]

which is the identity that makes a one-mode multimode run and a mode-averaged one agree. The transform’s overlap tensor reproduces these ratios to better than \(10^{-11}\), so when the higher modes of a multimode \(\mathrm{HE}_{1m}\) run look suspicious, the intermodal Kerr coupling is not the place to look.

Tapers cost two scalars

For a scale-invariant mode the profile depends on \(r\) only through \(r/a\) and \(N \propto a^2\), so at nodes placed at \(r = a\xi\) the normalised field is exactly proportional to \(1/a\) and the weights to \(a^2\). Moving along a taper therefore rescales the matrices exactly:

\[S(z) = S(0)\,\frac{a(0)}{a(z)}, \qquad W(z) = W(0)\,\frac{a(z)}{a(0)},\]

which is rescaled(), and their product — the thing the transform actually applies — does not move at all.

Mode sets

ModeCollection is an ordered set of modes sharing one cross-section, validated once, because the mode axis of the kernel state is positional and one transform matrix serves the whole set. It reports the highest azimuthal order and whether the azimuthal coordinate has to be resolved, and it is a Sequence[Mode], so the quadrature and the mode matrices take it directly.

For a vector run, with_polarisations() expands a spatial set into the polarisation-resolved one: each hybrid mode is followed by its partner, the same mode turned by \(\pi/(2n)\), which turns the pattern a further quarter turn from \(x\) towards \(y\) and so exchanges the two Cartesian components: the pair runs \(x\) then \(y\) for \(\mathrm{HE}_{1m}\). A transverse mode is carried once — \(\mathrm{TE}_{0m}\) and \(\mathrm{TM}_{0m}\) are different modes, not two states of one.

overlap() integrates adaptively with scipy.integrate.dblquad(), deliberately not on the fixed rule, so that the rule’s orthonormality can be checked against something independent rather than against itself.

A capillary worked example

The four lowest \(\mathrm{HE}_{1m}\) modes of a helium-filled capillary, evaluated directly from their mode objects: the transverse profiles a multimode run projects onto, and the loss each carries.

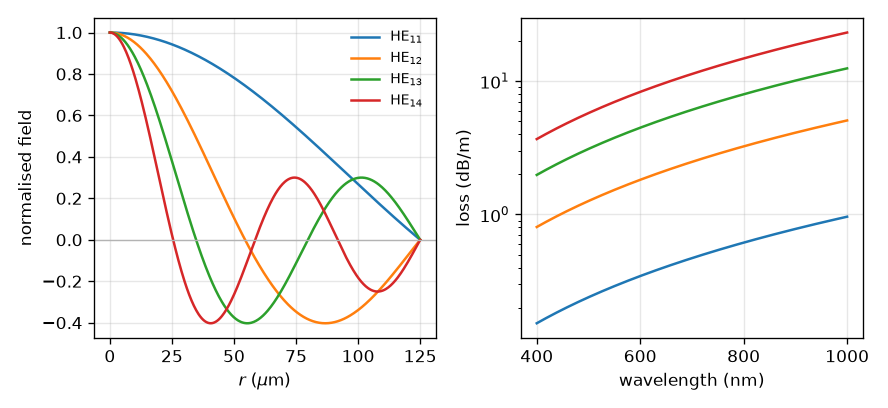

The four lowest HE_1m modes of a 125 um capillary filled with 1 bar of helium. Left, the transverse profiles: each is a Bessel function of r/a vanishing on the wall, and they are mutually orthogonal, which is what the quadrature rule has to reproduce. Right, the loss, which grows as the square of the Bessel zero u_1m and as the inverse cube of the radius – HE_14 leaks 24 times faster than HE_11.

The zero-dispersion wavelength follows from the balance between the gas and the waveguide, and moves with pressure:

from solprop.modes import MarcatiliMode
from solprop.modes.base import zdw

mode = MarcatiliMode(125e-6, "He", 0.4, model="reduced")
zdw(mode)  # 3.767e-07 m

zdw() brackets the root of \(\beta_2\) and raises when there is none in the window, rather than returning a missing value that would propagate silently into later arithmetic: a mode with no zero-dispersion point is a fact the caller has to see.
